🔑 Key Takeaway:

Fiberglass membrane is a strong, lightweight, inorganic fabric used in roofing and waterproofing systems to provide dimensional stability, fire resistance, and long-lasting performance. It’s particularly effective in bituminous, cementitious, and acrylic-based roofing systems.

What Is a Fiberglass Membrane?

A fiberglass membrane is a woven or non-woven fabric made from fine glass fibers, formed into a mesh or mat. It's engineered to provide strength and stability to waterproofing systems. Unlike organic materials, fiberglass is rot-proof, fire-resistant, and chemically stable, making it an ideal component in long-term roofing applications.

Fiberglass membranes are often sold in rolls and are available in various thicknesses (commonly from 50g/m² to 120g/m²) to suit different reinforcement needs.

Fiberglass Membrane vs. Polyester Membrane

While both fiberglass and polyester membranes are used for reinforcement, they behave very differently in roofing applications.

• Flexibility: Fiberglass is more rigid, while polyester is very flexible and better for surfaces that expand or contract.

• Tensile Strength: Fiberglass offers excellent dimensional stability but lower elongation compared to polyester.

• Fire Resistance: Fiberglass excels in fire resistance due to its inorganic nature.

• Water Absorption: Both are moisture-resistant, but fiberglass has extremely low absorption, making it ideal for damp conditions.

• Best Use: Fiberglass is best suited for stable, rigid systems where movement is minimal. Polyester is preferred in systems with expansion and contraction due to temperature swings.

Primary Uses of Fiberglass Membrane in RoofingReinforcement in Modified Bitumen Sheets

In torch-applied APP or SBS modified bitumen systems, fiberglass membranes serve as core reinforcement, improving:

• Dimensional stability (so the sheet doesn't stretch or shrink)

• Resistance to high temperatures and foot traffic

• Overall durability and lifespan

Base Layer for Flat Roofing Systems

Fiberglass membranes are used as a base layer beneath liquid-applied coatings on flat or low-slope roofs. This prevents membrane distortion, protects insulation layers, and offers an even foundation for topcoats.

Wall Systems and EIFS Applications

In wall coating systems such as EIFS (Exterior Insulation and Finish Systems) and stucco, fiberglass mesh is embedded in acrylic or cementitious coatings to:

• Prevent cracking

• Strengthen corners and expansion joints

• Support façade movement without compromising aesthetics

Cementitious and Acrylic Waterproofing Systems

For cement-based waterproofing on balconies, terraces, foundations, and wet rooms, fiberglass membranes improve:

• Crack resistance

• Bonding strength

• Long-term durability of the coating

Fiberglass holds up well in rigid cementitious systems, especially where flexibility is less of a concern.

Roof Repairs and Flashing Work

Fiberglass tape and strips are used for sealing and reinforcing:

• Pipe penetrations

• Roof vents

• Drains and gutters

• Flashings and joints

It’s compatible with asphalt emulsions, roof sealants, and acrylic coatings, making it a go-to material for long-term patch jobs.

Benefits of Using Fiberglass MembraneInorganic and Rot-Proof

Because fiberglass is made from glass fibers, it won’t decay, mold, or rot — even in wet or humid environments. This makes it perfect for long-term waterproofing solutions.

Fire Resistance

Fiberglass is non-combustible, making it ideal for high-temperature or flame-applied systems like torch-down roofing. It also adds a layer of protection in fire-prone areas.

High-Temperature Stability

Unlike organic fabrics, fiberglass maintains its shape and strength even under extreme temperatures. It’s a dependable reinforcement option in torch-down applications.

UV and Weather Resistance

Fiberglass membranes resist degradation from prolonged UV exposure and temperature cycles, contributing to a longer-lasting roof system.

Affordable and Widely Available

It’s a cost-effective solution that offers high performance at a relatively low material cost. Plus, it’s easy to find in both bulk rolls and precut formats.

How to Install Fiberglass Membrane

Here’s a simplified guide for embedding fiberglass membrane in a liquid-applied roofing system:

1. Surface Preparation: Clean the area thoroughly. Remove debris, oils, and old materials.

2. Priming: If the surface is porous or metallic, use a compatible primer.

3. Base Coat Application: Apply a base coat of the waterproofing material (acrylic, cementitious, etc.) per manufacturer’s instructions.

4. Lay Down the Membrane: Roll out the fiberglass membrane while the coating is still wet.

5. Embed and Smooth: Use a brush or roller to fully embed the membrane into the base layer. Work out wrinkles and air pockets.

6. Apply Topcoat: Once dry, add the recommended topcoat(s) for protection and performance.

7. Overlap Membranes: If using multiple sheets, ensure a 2–3 inch overlap for waterproof continuity.

⚠️ Tip: Use sharp scissors or a utility knife to avoid fraying edges. Fiberglass can shed small particles, so gloves and masks are recommended during cutting and handling.

Types of Fiberglass MembranesFiberglass Mesh (Open Weave)

Used mainly for walls, facades, and EIFS, this type is flexible and easy to embed into thin coatings.

Fiberglass Mat (Non-Woven)

Common in roofing and bitumen reinforcement, this is thicker and offers more stability over large flat areas.

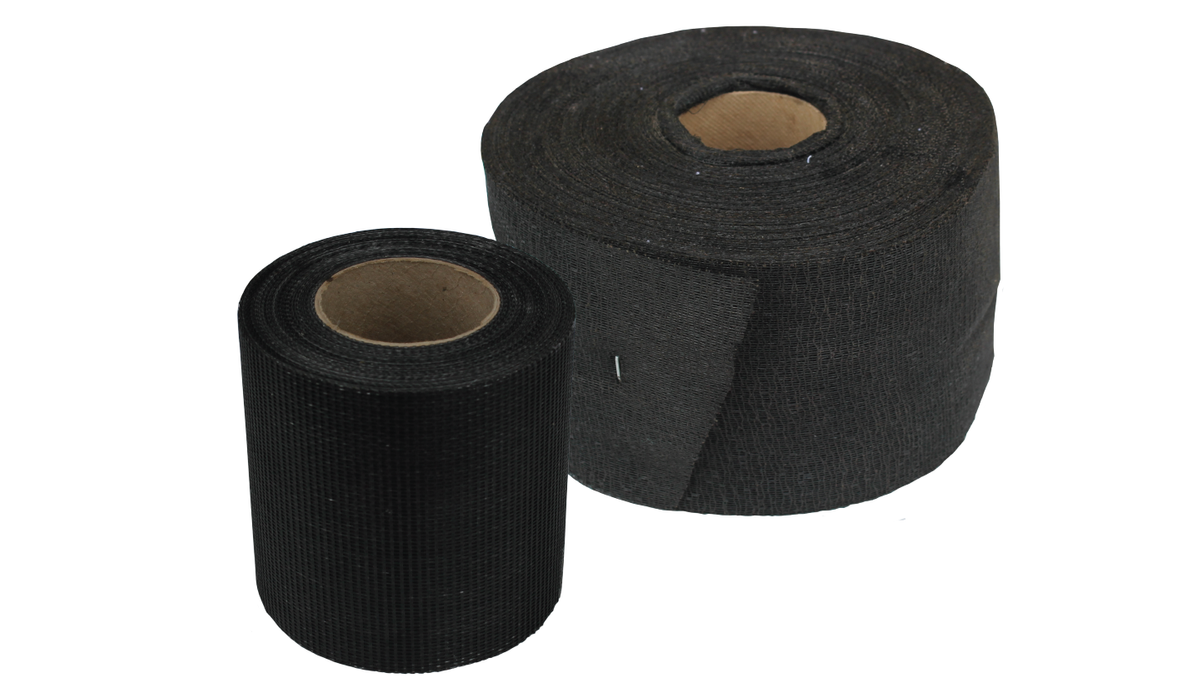

Fiberglass Tape (Self-Adhesive or Plain)

Ideal for crack repair, pipe wrapping, and small detail work, fiberglass tape is a handy option for quick fixes and reinforcement of seams.

Best Roofing Applications for Fiberglass MembraneFlat Roof Restoration

Fiberglass membrane is often embedded in acrylic or silicone coatings to stabilize aging flat roofs and prevent splitting or delamination.

Torch-Down Roofing

In torch-applied systems, fiberglass acts as a structural backbone, resisting distortion and fire damage under high heat.

Balcony and Deck Waterproofing

On outdoor decks and patios, fiberglass-reinforced coatings help bridge surface cracks and prevent water infiltration — especially under tile or pavers.

When Should You Choose Fiberglass Over Polyester?

Fiberglass membrane is your best bet when:

• You’re working in hot-applied systems or torch-down bitumen applications

• Fire resistance is required

• The roof structure is rigid and doesn’t flex or expand

• You need a cost-effective, stable reinforcement material

However, for more flexible roofing systems that move due to heat or structural shifts, polyester membrane may be a better fit.

Final Thoughts: Is Fiberglass Membrane Right for You?

Fiberglass membrane is a proven, versatile material in the world of roofing and waterproofing. It provides excellent reinforcement for bitumen sheets, liquid coatings, wall systems, and repair work. If your project demands dimensional stability, heat resistance, and long-lasting waterproofing, fiberglass is a smart, reliable choice.

It might not be as flexible as polyester, but where movement isn’t a concern, its fireproof, rot-proof, and weatherproof properties make it a roofing staple that’s here to stay.
